tgstkImageToMeshFilter Class Reference

Tetrahedral mesh generation from a multiclass label image. More...

#include <tgstkImageToMeshFilter.h>

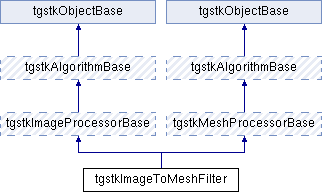

Inheritance diagram for tgstkImageToMeshFilter:

Public Member Functions
	tgstkImageToMeshFilter ()
	~tgstkImageToMeshFilter ()
bool	check ()
void	execute ()
void	exudeOff ()
void	exudeOn ()
vtkSmartPointer< vtkUnstructuredGrid >	getOutputMesh ()
void	lloydOff ()
void	lloydOn ()
void	odtOff ()
void	odtOn ()
void	perturbOff ()
void	perturbOn ()
void	setInputImage (vtkSmartPointer< vtkImageData > image)
void	setMaximumCellRadiusEdgeRatio (double maximumCellRadiusEdgeRatio)
void	setMaximumCellSize (double maximumCellSize)
void	setMaximumFacetDistance (double maximumFacetDistance)
void	setMaximumFacetSize (double maximumFacetSize)
void	setMinimumFacetAngle (double minimumFacetAngle)
void	setUseExude (bool useExude)
void	setUseLloyd (bool useLloyd)
void	setUseODT (bool useODT)
void	setUsePerturb (bool usePerturb)
Public Member Functions inherited from tgstkImageProcessorBase
virtual	~tgstkImageProcessorBase ()
Public Member Functions inherited from tgstkAlgorithmBase
virtual	~tgstkAlgorithmBase ()
bool	update ()
Public Member Functions inherited from tgstkObjectBase
virtual	~tgstkObjectBase ()
std::string	getObjectName ()
Public Member Functions inherited from tgstkMeshProcessorBase
virtual	~tgstkMeshProcessorBase ()

Private Attributes
double	maximumCellRadiusEdgeRatio
double	maximumCellSize
double	maximumFacetDistance
double	maximumFacetSize
double	minimumFacetAngle
bool	useExude
bool	useLloyd
bool	useODT
bool	usePerturb
vtkSmartPointer< vtkImageData >	inputImage
vtkSmartPointer< vtkUnstructuredGrid >	outputMesh

Additional Inherited Members
Protected Member Functions inherited from tgstkImageProcessorBase
	tgstkImageProcessorBase ()
bool	_assertImageNumberOfScalarComponents (vtkSmartPointer< vtkImageData > image, std::vector< int > numberOfScalarComponents, std::string name)
bool	_assertImageScalarType (vtkSmartPointer< vtkImageData > image, std::vector< int > scalarTypes, std::string name)
bool	assertEqualImageDimensions (std::vector< vtkSmartPointer< vtkImageData >> images)
bool	assertEqualImageSpacings (std::vector< vtkSmartPointer< vtkImageData >> images)
Protected Member Functions inherited from tgstkAlgorithmBase
	tgstkAlgorithmBase ()
template<typename Type >
bool	_assertNotNullPtr (Type var, std::string name)
template<typename Type >
bool	_assertValueInRange (Type var, Type min, Type max, std::string name)
template<typename Type1 , typename Type2 >
bool	_assertValueIsEqual (Type1 var1, Type2 var2, std::string name1, std::string name2)
Protected Member Functions inherited from tgstkObjectBase
	tgstkObjectBase ()
Protected Member Functions inherited from tgstkMeshProcessorBase
	tgstkMeshProcessorBase ()
Static Protected Member Functions inherited from tgstkImageProcessorBase
template<typename Type >
static void	fillImage (vtkSmartPointer< vtkImageData > image, Type value)
static vtkSmartPointer< vtkImageData >	getNewImageFromReferenceImage (vtkSmartPointer< vtkImageData > reference, int type, int numberOfComponents=1)
Protected Attributes inherited from tgstkObjectBase
std::string	objectName

Detailed Description

Tetrahedral mesh generation from a multiclass label image.

tgstkImageToMeshFilter generates a tetrahedral mesh from a label image with multiple subdomains using 3D restricted Delaunay triangulation with a protecting phase to guarantee an accurate representation of the subdomain boundaries. The filter is based on the CGAL library.

Constructor & Destructor Documentation

tgstkImageToMeshFilter()

tgstkImageToMeshFilter::tgstkImageToMeshFilter

(

)

~tgstkImageToMeshFilter()

tgstkImageToMeshFilter::~tgstkImageToMeshFilter

(

)

Member Function Documentation

check()

bool tgstkImageToMeshFilter::check ( )

virtual

Reimplemented from tgstkAlgorithmBase.

execute()

void tgstkImageToMeshFilter::execute ( )

virtual

Implements tgstkAlgorithmBase.

exudeOff()

void tgstkImageToMeshFilter::exudeOff

(

)

Deactivates the CGAL sliver exuder.

See [1].

exudeOn()

void tgstkImageToMeshFilter::exudeOn

(

)

Activates the CGAL sliver exuder.

See [1].

getOutputMesh()

vtkSmartPointer< vtkUnstructuredGrid > tgstkImageToMeshFilter::getOutputMesh

(

)

Gets the generated tetrahedral mesh.

The mesh is of type vtkUnstructuredGrid.

lloydOff()

void tgstkImageToMeshFilter::lloydOff

(

)

Deactivates the CGAL Lloyd smoother.

See [1].

lloydOn()

void tgstkImageToMeshFilter::lloydOn

(

)

Activates the CGAL Lloyd smoother.

See [1].

odtOff()

void tgstkImageToMeshFilter::odtOff

(

)

Deactivates the CGAL ODT smoother.

See [1].

odtOn()

void tgstkImageToMeshFilter::odtOn

(

)

Activates the CGAL ODT smoother.

See [1].

perturbOff()

void tgstkImageToMeshFilter::perturbOff

(

)

Deactivates the CGAL sliver perturber.

See [1].

perturbOn()

void tgstkImageToMeshFilter::perturbOn

(

)

Activates the CGAL sliver perturber.

See [1].

setInputImage()

void tgstkImageToMeshFilter::setInputImage

(

vtkSmartPointer< vtkImageData >


)

Sets the multiclass label image.

The image scalar type must be VTK_UNSIGNED_SHORT.

setMaximumCellRadiusEdgeRatio()

void tgstkImageToMeshFilter::setMaximumCellRadiusEdgeRatio

(

double

maximumCellRadiusEdgeRatio

)

Sets the CGAL cell radius edge ratio mesh criterion.

See [1].

setMaximumCellSize()

void tgstkImageToMeshFilter::setMaximumCellSize

(

double

maximumCellSize

)

Sets the CGAL cell size mesh criterion.

See [1].

setMaximumFacetDistance()

void tgstkImageToMeshFilter::setMaximumFacetDistance

(

double

maximumFacetDistance

)

Sets the CGAL facet distance mesh criterion.

See [1].

setMaximumFacetSize()

void tgstkImageToMeshFilter::setMaximumFacetSize

(

double

maximumFacetSize

)

Sets the CGAL facet size mesh criterion.

See [1].

setMinimumFacetAngle()

void tgstkImageToMeshFilter::setMinimumFacetAngle

(

double

minimumFacetAngle

)

Sets the CGAL facet angle mesh criterion.

See [1].

setUseExude()

void tgstkImageToMeshFilter::setUseExude

(

bool

useExude

)

Activates/deactivates the CGAL sliver exuder.

See [1].

setUseLloyd()

void tgstkImageToMeshFilter::setUseLloyd

(

bool

useLloyd

)

Activates/deactivates the CGAL Lloyd smoother.

See [1].

setUseODT()

void tgstkImageToMeshFilter::setUseODT

(

bool

useODT

)

Activates/deactivates the CGAL ODT smoother.

See [1].

setUsePerturb()

void tgstkImageToMeshFilter::setUsePerturb

(

bool

usePerturb

)

Activates/deactivates the CGAL sliver perturber.

See [1].

Member Data Documentation

inputImage

vtkSmartPointer<vtkImageData> tgstkImageToMeshFilter::inputImage

private

maximumCellRadiusEdgeRatio

double tgstkImageToMeshFilter::maximumCellRadiusEdgeRatio

private

maximumCellSize

double tgstkImageToMeshFilter::maximumCellSize

private

maximumFacetDistance

double tgstkImageToMeshFilter::maximumFacetDistance

private

maximumFacetSize

double tgstkImageToMeshFilter::maximumFacetSize

private

minimumFacetAngle

double tgstkImageToMeshFilter::minimumFacetAngle

private

outputMesh

vtkSmartPointer<vtkUnstructuredGrid> tgstkImageToMeshFilter::outputMesh

private

useExude

bool tgstkImageToMeshFilter::useExude

private

useLloyd

bool tgstkImageToMeshFilter::useLloyd

private

useODT

bool tgstkImageToMeshFilter::useODT

private

usePerturb

bool tgstkImageToMeshFilter::usePerturb

private

---

The documentation for this class was generated from the following files:

• tgstkImageToMeshFilter.h
• tgstkImageToMeshFilter.cpp
